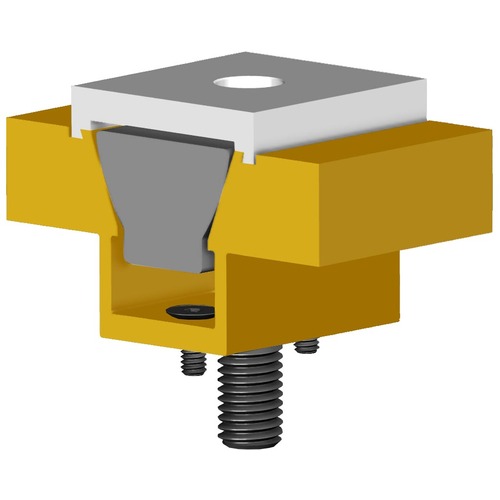

Model 60200 - 5/8″-11 Thread Size - Machinable Uniforce Clamp with Locking Plate
| Type | Uniforce Clamp | Includes | 1 Clamp Assembly with Locking Plate |
| Thread Size | 5/8″-11 | Clamp Length | 2.500″ |
| Overall Length | 2.500″ | Outer Edge Screw | 1/4″-20 |
| Overall Width | 4″ | Style | Inch |
| Model No | 60200 | Contact Depth | 1″ |
| Clamp Height | 2″ | Machineable Stock | 0.800″ |
| Base Width | 1.625″ | Centerline Distance | 1.625″ |
| Holding Force | 6,000 lbs |
Product Features
| Remarks | •This compact method of workholding will allow more parts per load at a lower price than vise soft jaws •The compact Mitee-Bite Uniforce Clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece •The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel •A unique locking plate is provided to make the clamp rigid while machining the jaws to your specifications, without vibration. | Country of Origin | USA |
Shipping Info
Package Weight
2.28
