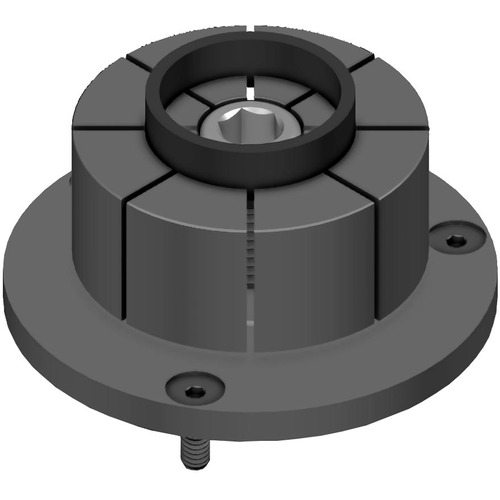

#38400 - M16 Thread ID Xpansion Clamp #7
| Type | Xpansion Clamp | Contact Length | 32.3mm |
| Thread Size | M16 | Minimum Diameter | 29.3mm |
| Model No | #7 | Flange Diameter | 107.5mm |
| Clamp Height | 37.6 mm | Flange Thickness | 7.9mm |
| Holding Force | 32,930 lbs | Overall Height | 45.5 mm |
| Outer Edge Screw | M6 on 92.6 mm BHC | Thread Length | 19.3mm |
| Style | Metric | Diameter | 77.7mm |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
7.00000
Package Width
6.50000
Package Height
2.50000
Package Weight
4.145
