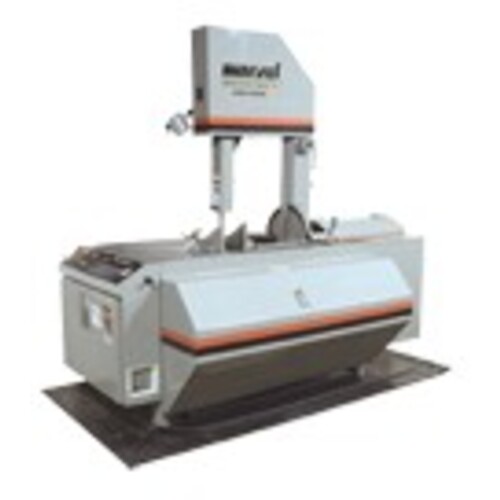

Mark III 18″ × 22″ Capabity Vertical Production Bandsaw with 3? Forward Canted Column, 60? Miter Capability, Variable Speed (50 TO 450SFPM), 24″ × 33″ Work Table, 5 hp, 3-Phase 240 V
| Horizontal/Vertical | Vertical | Table Width | 24 1/4″ |
| round_capacity__90deg | 22″ | Floor to Table Height | 34 1/2″ |
| rectangle_capacity__90deg | 18″ × 22″ | Capacity | 18″ × 22″ |
| Horsepower | 5 hp | round_capacity__45deg | 13″ |
| Voltage | 220 V | rectangle_capacity__45deg | 18″ × 13″ Left, 18″ × 14 1/2″ Right |
| Phase | 3 Phase | rectangle_capacity__60deg | 18″ × 7.3″ Left 18″ × 9.7″ Right |
| Blade Length | 15' 4″ | Weight | 2,870 lbs |
| Blade Width | 1 1/4″ | Model No | Mark 8 III |
| Miter-Cutting | No | Blade Size | 19″ |
| Table Tilt | No | Type | Vertical Bandsaw - Tilt Frame |
| Number of Speeds | Variable | Blade Wheel Diameter | 19″ |
| Blade Speeds | 50-450 SFPM | Height | 90″ |
| Table Length | 33″ |
Product Features
| Remarks | •Quick-action vise: maximum opening 18″. •Automatic stops?. •Work light. •Coolant system: 21 gallon capacity. •Capacity iron table & cartridge. •Flushing hose & power chip brush. •Carbide guide system. •Blade tension indicator. •Electrical equipment conforms to NFPA-79. •Welded edge saw blade. •5 Gallons of coolant. •Miters 60? left & right,. •Saw blade: 1-1/4″ wide. •Feed range: 0 to 250 lbs.. •Automatic column return and the column can be adjusted to either straight or 3? forward canted approach angle for increased cutting efficiency of structural materials. •Models 81112 & 81114PT include power tilt head. •2 Year Parts & Labor Warranty. •F.O.B. OSKOSH, WI." | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
102.00000
Package Width
73.00000
Package Height
87.00000
Package Weight
2800
