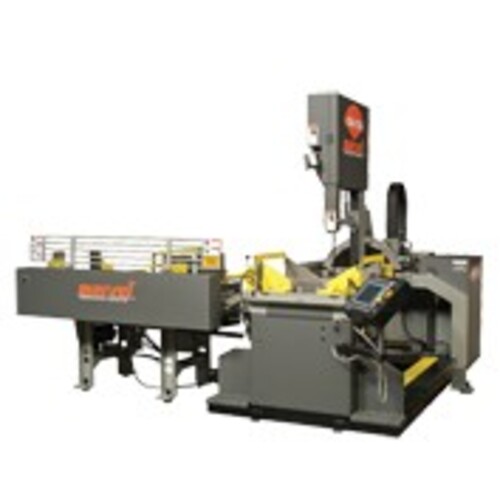

2150APC60 20″ × 25″ Cap. High Production Saw with an NC Programmable Control
| Horizontal/Vertical | Vertical | Number of Speeds | Variable |
| round_capacity__90deg | 20″ | Blade Speeds | 50-650 FPM |
| rectangle_capacity__90deg | 20″ × 25″ | Capacity | 20″ × 25″ |
| Horsepower | 7 1/2 hp | round_capacity__45deg | 17″ |
| Voltage | 230 V/460 V | rectangle_capacity__45deg | 20″ × 17″ |
| Phase | 3 Phase | rectangle_capacity__60deg | 20″ × 11 1/4″ |
| Blade Length | 18' 2″ | Weight | 6,450 lbs |
| Blade Width | 1 1/2″ | Model No | 2150APC360 |
| Miter-Cutting | No | Type | Vertical Bandsaw |
| Table Tilt | No | Height | 103″ |
Product Features
| Remarks | •48? Servo driven automatic bar feed standard. •Twin ball screw bar feed with following support rollers. •Full stroke hydraulic vises. •Vector control inverter blade drive. •Combination carbide & roller bearing blade guides. •Easy load blade guides. •Full color screen with graphical part programming. •Stores up to 500 jobs. •Direct force sensing electric feed. •Cast iron table and cartridge. •Linear bearing on cartridge. •Key pad miter and length programming. •Dual feed control-rate and force. •60 gallon standard coolant system. •Full capacity bundling capabilities. •2?Year Warranty Parts & Labor. •F.O.B. OSKOSH, WI. | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
6450.0000
