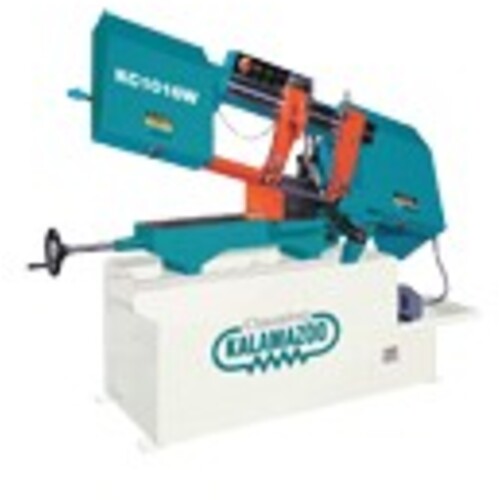

10″ Wet Cutting Horizontal Bandsaw
| Horizontal/Vertical | Horizontal | Blade Speeds | 75, 121, 190, 305 FPM |
| round_capacity__90deg | 10″ | Floor to Table Height | 25″ |
| rectangle_capacity__90deg | 9″ × 14 1/2″ | Capacity | 10″ × 16″ |
| Horsepower | 1 1/2 hp | round_capacity__45deg | 9″ |
| Voltage | 110 V/220 V | rectangle_capacity__45deg | 9″ × 9″ |
| Phase | 1 Phase | Weight | 950 lbs |
| Blade Length | 11' | Model No | KC1016W1 |
| Blade Width | 1″ | Blade Size | 15″ |
| Miter-Cutting | No | Type | Horizontal Wet Bandsaw |
| Table Tilt | No | Blade Wheel Diameter | 15″ |
| Number of Speeds | 4 | Height | 48″ |
Product Features
| Remarks | •Totally enclosed transmission. •Heavy-duty hydraulic cylinder with precision ground hinge support. •Pan shaped base with built-in coolant & hydraulic system. •Cast iron bed. •Carbide blade guides with roller bearings. •Two additional bearings to support blade from the top. •Recirculating coolant system with application through both guides. •Blade brush. •Valve controlled hydraulic cylinder controls feed and cutting rate and can be adjusted for different types and sizes of material. •Adjustable stock stop. •Cast iron quick acting 0- 45? vise with manual leadscrew clamping system. •Anti-slip hand wheel. •Tool box, leveling pads, and an additional wire brush. •Operation & parts manual. •2?Year Limited Warranty. •F.O.B. KALAMAZOO, MI. | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
950
