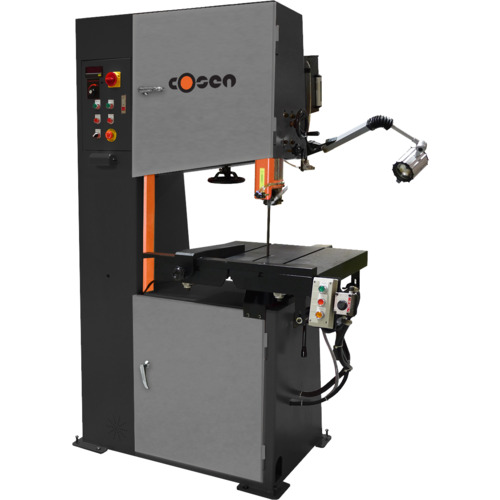

12″ × 23″ Hydraulic Moving Table Vertical Contour Bandsaw - 3HP
| Horizontal/Vertical | Vertical | Floor Space Required - Length | 37.13″ |
| round_capacity__90deg | 12″ | Floor Space Required - Width | 52.75″ |
| Horsepower | 3 hp | Floor Space Required - Height | 81.5″ |
| Voltage | 220 V | Throat Capacity | 23 1/2″ |
| Phase | 3 Phase | Capacity | 12″ × 23.5″ |
| Blade Length | 14 1/8″ | square_capacity__90deg | 12″ |
| Blade Width | 1/16″ - 1″ | Weight | 1,542 lbs |
| Miter-Cutting | No | Model No | VCH-600H |
| Table Tilt | Hydraulic | Style | Hydraulic |
| Blade Speeds | 97-1748 SFPM | Type | Hydraulic Vertical Contour Bandsaw |
| Blade Guides | Carbide Guides | Height | 12″ |
Product Features
| Remarks | •Cast aluminum work table. •Cast wheels are rubber capped. •Inverter-controlled blade speed. •Fully adjustable tungsten carbide blade guides. •Blade tensioning wheel built-in. •Band break switch. •Work light. •Post elevating hand wheel. •Rip fence. •Table tilts 15? L/R. •Two tee slots in tabletop. •Hydraulic table feed rate control. •Band mist lubricator. | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
1542
