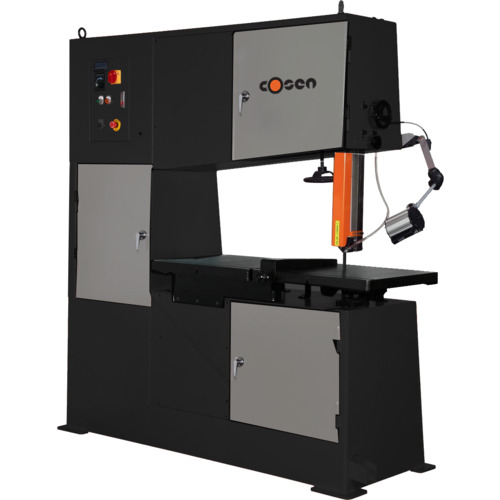

13″ × 39″ Heavy Duty Vertical Contour Bandsaw - 3HP
| Horizontal/Vertical | Vertical | Blade Guides | Carbide Guides |
| round_capacity__90deg | 13″ | Floor Space Required - Length | 40″ |
| rectangle_capacity__90deg | 13″ × 36″ | Floor Space Required - Width | 72″ |
| Horsepower | 3 hp | Floor Space Required - Height | 108″ |
| Voltage | 220 V | Throat Capacity | 36″ |
| Phase | 3 Phase | Capacity | 13″ × 39″ |
| Blade Length | 20' | square_capacity__90deg | 13″ × 13″ |
| Blade Thickness | 0.042″ | Weight | 1,764 lbs |
| Blade Width | 1 1/4″ | Model No | VCH-1000 |
| Drive System | Inverter | Style | Heavy Duty Contour |
| Miter-Cutting | No | Type | Heavy Duty Vertical Contour Bandsaw |
| Table Tilt | No | Height | 13″ |
| Blade Speeds | 100-1750 SFPM |
Product Features
| Remarks | •Cast aluminum work table. •Crowned and rubber capped wheels. •Inverter-controlled blade speed. •Fully adjustable tungsten carbide blade guides. •Blade tensioning wheel built-in. •Work light. •Rip fence. •Main table tilts 15? L/R. •+/- 10? fore/aft table tile. •Secondary table - stationary. •Chip blower. | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
11764
