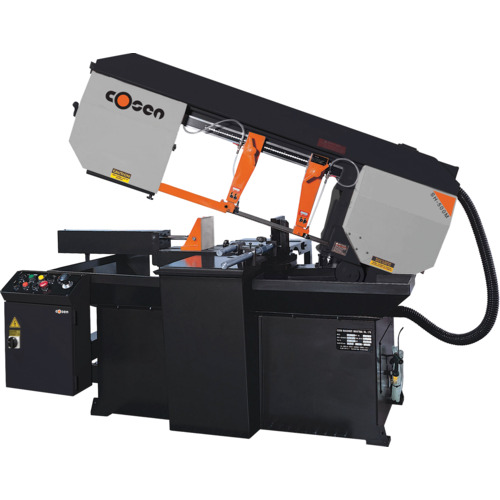

‎11″ × 19″ Semi Auto Mitering Horizontal Pivot Bandsaw - 3HP

Item # 1126852

Brand: Cosen Saws

MFG #: SH-500M

Legacy Part #: PX40SH500M

Quantity Available

Horizontal/Vertical

Horizontal

Floor Space Required - Length

74″

round_capacity__90deg

13″

Floor Space Required - Width

107″

rectangle_capacity__90deg

11″ × 19.7″

Floor Space Required - Height

82″

Horsepower

3 hp

Capacity

11″ × 19.7″

Voltage

220 V

round_capacity__45deg

11 1/2″

Phase

3 Phase

round_capacity__60deg

8.7″

Blade Length

13' 7″

rectangle_capacity__45deg

11″ × 11″

Blade Thickness

0.035″

rectangle_capacity__60deg

11″ × 7.9″

Blade Width

1″

square_capacity__45deg

11″ × 11″

Drive System

Stepless Pulley

square_capacity__90deg

11″ × 11″

Miter-Cutting

Yes

Weight

2,079 lbs

Table Tilt

Model No

SH-500M

Blade Speeds

Four speed pulley drive: 60 Hz: 75, 117, 166, 247FPM

Style

Pivot Head

Blade Guides

Tungsten Carbide w/Roller Bearings

Type

Semi auto Mitering Horizontal Pivot Bandsaw

Product Features

Remarks

‎ •Swivel sawhead allows cutting at any angle between 0? (straight cut) and 60? (miter cut). •Hard stops at 0?, 45?, and 60? for quick angle set up. •Integral coolant system. •Blade drive equipped with variable pully drive. •Infinitely variable blade speed system - 3 HP drive. •Carbide guides. •Synchronized blade brush. •Work height selector. •Built-in adjustable material stop. •Full stroke machine vise. •Optional Micro Droplet Applicator replaces traditional flood coolant system.

Country of Origin

Taiwan

Shipping Info

Hazard Code

Shipping Notes

Ships by Truck. Additional Costs Apply.

Package Weight

2178
