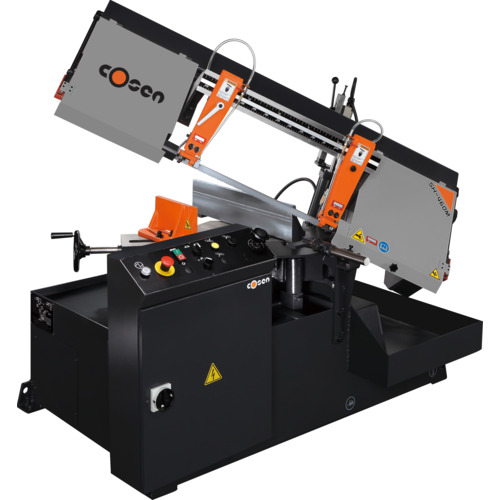

9″ × 18″ Semi Auto Swivel Head Mitering Horizontal Bandsaw - 2HP
| Horizontal/Vertical | Horizontal | Floor Space Required - Length | 55″ |
| round_capacity__90deg | 10″ | Floor Space Required - Width | 74.8″ |
| rectangle_capacity__90deg | 9″ × 18.1″ | Floor Space Required - Height | 66.9″ |
| Horsepower | 2 hp | Capacity | 9″ × 18.1″ |
| Voltage | 220 V | round_capacity__45deg | 9″ |
| Phase | 3 Phase | round_capacity__60deg | 4.3″ |
| Blade Length | 11' 6″ | rectangle_capacity__45deg | 9″ × 9″ |
| Blade Thickness | 0.035″ | rectangle_capacity__60deg | 9″ × 4.3″ |
| Blade Width | 1″ | square_capacity__45deg | 7 1/2″ × 71/2″ |
| Drive System | Stepless Pulley | square_capacity__90deg | 9″ × 9″ |
| Miter-Cutting | Yes | Weight | 1,450 lbs |
| Table Tilt | No | Model No | SH-460M |
| Blade Speeds | 95, 150, 213, 321 SFPM | Style | Swivel Head |
| Blade Guides | Tungsten Carbide w/Roller Bearings | Type | Semi Auto Swivel Head Mitering Horizontal Bandsaw |
Product Features
| Remarks | •Precision ground hinge guide saw frame through cutting cycle. •Heavy-duty cast iron swivel center features straight and miter cuts from 90 to 30 degrees. •Built-in coolant & hydraulic systems. •Carbide blade guides. •Rigid guide arms on an dovetail slide reduces vibration, achieving a better cutting result. •Downfeed rate & cutting pressure control. •Cast iron vises. | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
1450
