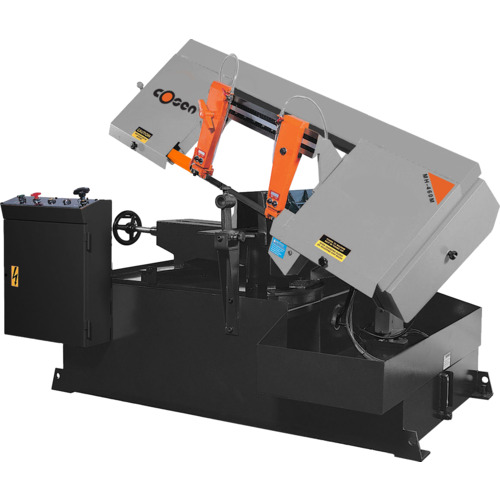

‎9″ × 18″ Manual Swivel Header Mitering Horizontal Bandsaw - 2HP

Item # 1126848

Brand: Cosen Saws

MFG #: MH-460M

Legacy Part #: PX40MH460M

Quantity Available

Horizontal/Vertical

Horizontal

Floor Space Required - Length

55″

round_capacity__90deg

10″

Floor Space Required - Width

74.8″

rectangle_capacity__90deg

9″ × 18.1″

Floor Space Required - Height

66.9″

Horsepower

2 hp

Capacity

9″ × 18.1″

Voltage

220 V

round_capacity__45deg

9″

Phase

3 Phase

round_capacity__60deg

4.3″

Blade Length

11' 5″

rectangle_capacity__45deg

9″ × 9″

Blade Thickness

0.035″

rectangle_capacity__60deg

9″ × 4.3″

Blade Width

1″

square_capacity__45deg

9″ × 9″

Drive System

Stepless Pulley

square_capacity__90deg

9″ × 9″

Miter-Cutting

Yes

Weight

1,320 lbs

Table Tilt

Model No

MH-460M

Blade Speeds

95, 150, 213, 321 SFPM

Style

Swivel Head

Blade Guides

Tungsten Carbide w/Roller Bearings

Type

Manual Swivel Head Mitering Horizontal Bandsaw

Product Features

Remarks

•Heavy duty hydraulic cylinder plus precision ground hinge support and guide. •Specially designed heavy-duty cast iron swivel center features straight and miter cuts from 90 to 30 degrees. •Large rugged base with build-in coolant & hydraulic systems. •2 HP motor, heavy-duty reducer, and variable step drive assembly. •4-speed transmission is equipped with the best worm gear speed reducer. •Carbide blade guides with roller bearings. •The rigid guide arms are mounted on an extra wide precision ground dovetail slide. •Two additional guides located on a central axis. •Integral coolant system. •Blade brush to remove chips from blade gullet. •Down feed rate & cutting pressure control. •Cast iron vises with replaceable extension plate. •Secure clamping via a dependable manual lead screw system with anti-slip hand wheel.

Country of Origin

Taiwan
