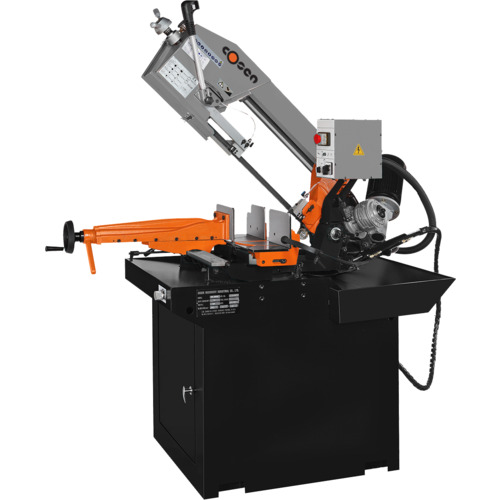

11″ × 9″ Manual Dual Miterin Horizontal Pivot Bandsaw - 1-1/2HP, 220V, 3PH
| Horizontal/Vertical | Horizontal | Floor Space Required - Length | 61″ |
| round_capacity__90deg | 10.2″ | Floor Space Required - Width | 31.5″ |
| rectangle_capacity__90deg | 9″ × 11.6″ | Floor Space Required - Height | 58.3″ |
| Horsepower | 1 1/2 hp | Capacity | 9″ × 11.6″ |
| Voltage | 220 V | round_capacity__45deg | 9.4″ |
| Phase | 3 Phase | round_capacity__60deg | 6.29″ |
| Blade Length | 9' 8.7″ | rectangle_capacity__45deg | 8.3″ × 8.3″ |
| Blade Thickness | 0.035″ | rectangle_capacity__60deg | 5.29″ × 6.3″ |
| Blade Width | 1″ | square_capacity__45deg | 8.26″ × 8.26″ |
| Drive System | Inverter | square_capacity__90deg | 9″ × 9″ |
| Miter-Cutting | Yes | Weight | 704 lbs |
| Table Tilt | No | Model No | MH-300DM |
| Number of Speeds | Variable | Style | Pivot Head |
| Blade Speeds | 122, 231 FPM | Type | Manual Dual Mitering Horizontal Pivot Bandsaw |
| Blade Guides | Tungsten Carbide w/Roller Bearings |
Product Features
| Remarks | •Hydraulic cylinder plus precision ground hinge support. •Swivel frame design. •Built-in integral coolant system. •Direct drive gearbox. •1.6 HP motor. •Carbide blade guides with roller bearings. •Two additional guides enhance blade support. •Cast-iron rigid guide arms. •Blade tensioning system fitted with indicator gauge. •Blade brush to remove chips. •Heavy duty quick clamp/release vise. •Adjustable down feed rate control with on/off valve. | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
704
