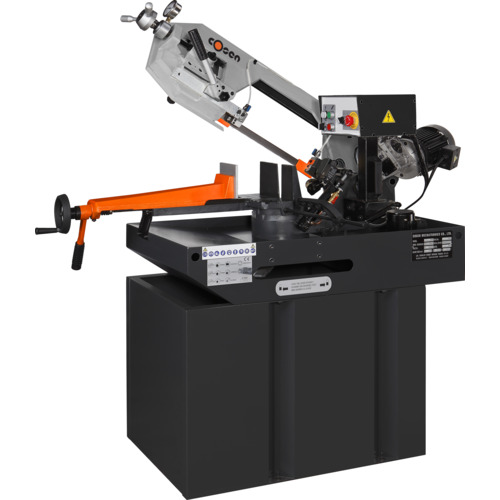

9″ × 6″ Manual Swivel Head Mitering Horizontal Bandsaw - 1-1/2HP, 220V, 1 or 3PH

| Horizontal/Vertical | Horizontal | Floor Space Required - Length | 53″ |
| round_capacity__90deg | 8.9″ | Floor Space Required - Width | 28″ |
| rectangle_capacity__90deg | 6″ × 9.45″ | Floor Space Required - Height | 52.2″ |
| Horsepower | 1 1/2 hp | Capacity | 6″ × 9.45″ |
| Voltage | 220 V | round_capacity__45deg | 5.7″ |
| Phase | 1 or 3 Phase | round_capacity__60deg | 3.5″ |
| Blade Length | 8' 1.625″ | rectangle_capacity__45deg | 5.7″ × 8.2″ |
| Blade Thickness | 0.035″ | rectangle_capacity__60deg | 3 1/2″ × 7″ |
| Blade Width | 1″ | square_capacity__45deg | 5.7″ × 5.7″ |
| Drive System | Inverter | square_capacity__90deg | 6″ × 6″ |
| Miter-Cutting | Yes | Weight | 550 lbs |
| Table Tilt | No | Model No | MH-270M |
| Number of Speeds | Variable | Style | Swivel Head |
| Blade Speeds | 125-250 FPM | Type | Manual Swivel Head Mitering Horizontal Bandsaw |
| Blade Guides | Tungsten Carbide w/Roller Bearings |
Product Features
| Remarks |
•Built-in integral coolant system.
•Blade cleaning chip brush.
•Stepless variable blade speed.
•Adjustable material stopper.
•60? swivel frame design.
•Hardened worm gear.
•Carbide insert and bearing to enhance blade support.
•Hydraulic feed control with on/off valve.
•Heavy duty quick clamp/release vise.
•AutoCut mode with large feed rate control valve.
•Quick Approach mode with release trigger. | Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
550
