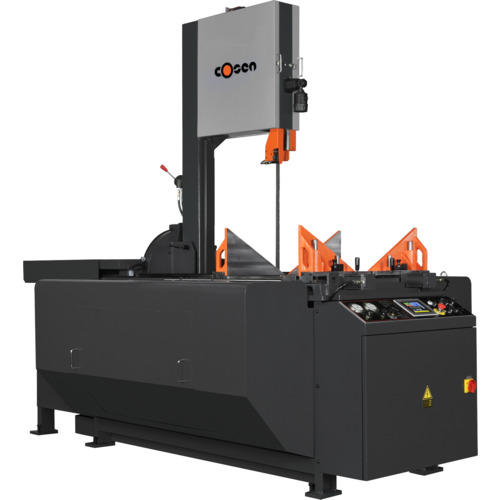

V-2230NC SEMI-AUTOMATIC V
| Horizontal/Vertical | Vertical | Blade Brush | Yes |
| round_capacity__90deg | 0 | Floor Space Required - Length | 122.8″ |
| rectangle_capacity__90deg | 22″ × 30″ | Floor Space Required - Width | 109.5″ |
| Horsepower | 7.5 hp | Floor Space Required - Height | 101.2″ |
| Voltage | 220 V | Feed System | Manual |
| Phase | 3 Phase | Feed Control | Manual |
| Blade Length | 17' 4.6″ | Vise Type | Hydraulic |
| Blade Thickness | 0.042″ | Blade Tension | Hydraulic |
| Blade Width | 1 1/4″ | Coolant | Yes |
| Drive System | Inverter | rectangle_capacity__45deg | LEFT: 20″ × 21″ | RIGHT: 20″ × 19.7″ |
| Miter-Cutting | Yes | rectangle_capacity__60deg | LEFT: 20″ × 14″ | RIGHT: 20″ × 12″ |
| Table Tilt | No | Weight | 5,093 lbs |
| Number of Speeds | Variable | Model No | V-2230NC |
| Blade Speeds | 66-328 ft/min | Style | Vertical Tilt-Frame |
| Blade Guides | Carbide Guides | Type | Semi-Auto Tilt-Frame Saw |
Product Features
| Country of Origin | Taiwan |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Weight
5093
