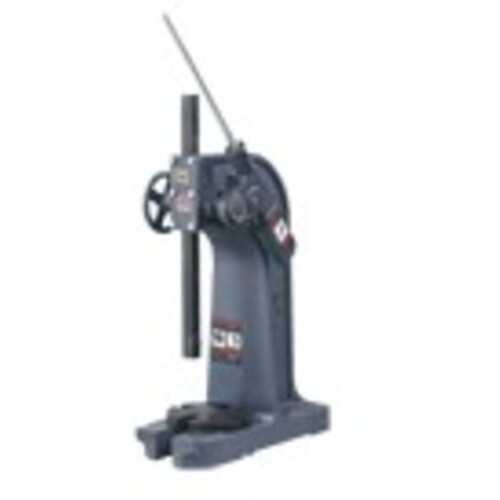

Ratchet Lever Arbor Press - Model 02004–5 tons
| Type | Ratchet Lever Arbor Press | Leverage Ratio | 55:1 |
| Type of Power | Manual | Stroke | 28 1/2″ |
| Pressure | 5 ton | Base Width | 10″ |
| Ram Width/Diameter | 2″ × 2″ × 23″ | Base Depth | 24″ |
| Throat Depth | 10″ | Weight | 450 lbs |
| Maximum Work Height | 28-1/2″ | Model No | 02004 |
| Maximum Work Width | 20″ | Capacity Over Table | 16″ |
Product Features
| Remarks | •Ratchet device permits lever to be used in the most convenient position. •Handwheel advances ram quickly to work. •Counterweight returns lever quickly afterdownstroke. •Pedestals available for most models. | Country of Origin | USA |
Shipping Info
Hazard Code
T
Shipping Notes
Ships by Truck. Additional Costs Apply.
Package Length
32.00000
Package Width
32.00000
Package Height
48.00000
Package Weight
450
