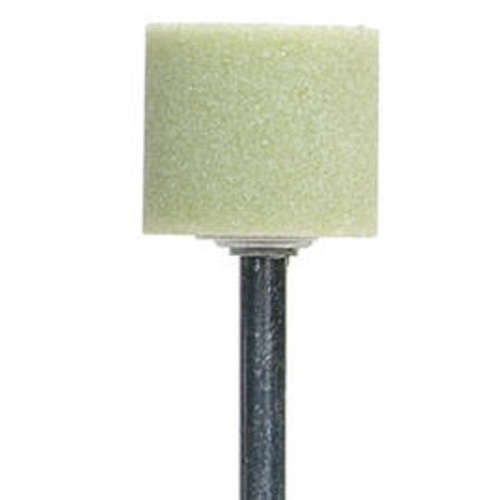

B131 1/2X1/2 VITRIFIED
Mounted Point ; Mounted Point ; 80 Grit ; O ; Ceramic Alumina ; 1/2″ Dia. ; 62420 Max. RPM ; Ceramic Alumina ; 1/8″ Shank ; 1/8″ Spindle ; 1/2″ Thickness
| Type | Mounted Point | Shank Size | 1/8″ |
| Grit | 80 | Spindle Diameter | 1/8″ |
| Grade | O | Thickness | 1/2″ |
| Abrasive Material | Ceramic Alumina | Standard Pack | 5 |
| Diameter | 1/2″ | Shape Number | B131 |
| Maximum RPM | 62,420 | Specifications | 3NQ80 |
| Series | Ceramic Alumina | Shank Length | 1-1/2″ |
Product Features
| Remarks | •Quantum grain is a unique, engineered ceramic grain shape ideal for high-volume operations grinding all high-speed alloys •Quantum grain provide minimal loading and heat build-up and provides up to 3X metal removal 5X longer life versus aluminum oxide •For best performance, always run at the maximum allowable speed •Medium grit for blending and deburring •Maximum operating speed is based on 1/2 in overhang •A mounted wheel is a small grinding wheel permanently fastened to its own spindle. They are used is a multitude of operations in almost every industry and on a variety of machines. Extensively used in tool and die shops, aerospace and foundries for removing parting lines, deburring, and finishing. Mounted wheels come in an extensive numbers of shapes, grit sizes and bond types to satisfy all of these applications. | Country of Origin | Mexico |
Shipping Info
Package Length
2.00000
Package Width
.62000
Package Height
.62000
Package Weight
0.02
