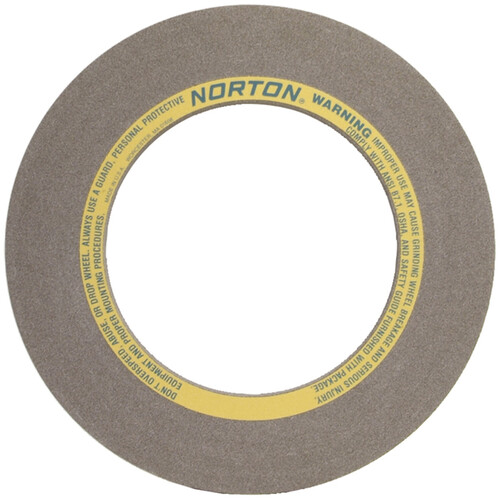

20″ × 6″ × 12″ Centerless Wheel Type 01 Straight 54 Grit Silicon Carbide/Aluminum Oxide
| Diameter | 20″ | Hardness | Q |
| Width | 6″ | Bond Type | Resin |
| Arbor Hole | 305 mm | Type | Centerless Wheel |
| Wheel Type | Type 01 | Bond | B24 |
| Abrasive Material | Aluminum Oxide | Maximum RPM | 1,815 |
| Grit | 54 | Specification | 32AC54-QB |
Product Features
| Remarks | •Aluminum oxide/silicon carbide abrasive blend several different materials from high to low tensile strength •Strong resin bond •Norton resin bond centerless wheels are the choice for stock removal, long irregular paths, and faster through feed grinding •Ideal when one wheel is used to grind several different materials, from high to low tensile strength •Made in USA in ISO certified facility •Centerless grinding is a production process that produces extremely close tolerances on metal cylindrical forms or parts. Centerless grinding is used on a wide variety of workpieces. The key components in the process are the grinding wheel, the work rest blade (used to support the work) and the regulating or feed wheel (the drive mechanism for the workpiece). | Country of Origin | USA |
Shipping Info
Hazard Code
W
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Weight
108
