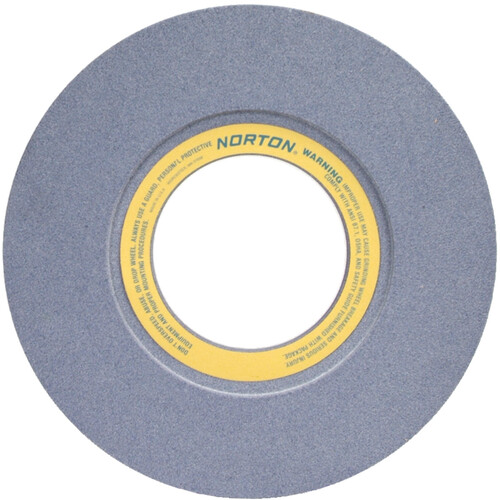

20″ × 2″ × 8″ 32A Cylindrical Wheel Type 07 Recessed Two Sides 46 Grit Aluminum Oxide
| Diameter | 20″ | Bond | VBE |
| Width | 2″ | Recess Type | T07 |
| Arbor Hole | 8″ | Recess Depth | 1/2″ |
| Wheel Type | Type 07 | 2nd Recess Depth | 1/2″ |
| Abrasive Material | Aluminum Oxide | Recess Diameter | 11-1/2″ |
| Grit | 46 | 2nd Recess Diameter | 11-1/2″ |
| Hardness | I | Maximum RPM | 1,245 |
| Bond Type | Vitrified | Specification | 32A46-I8VBE |
| Type | Cylindrical Wheel |
Product Features
| Remarks | •Sharp monocrystalline 32A aluminum oxide purple grain is the industry's most versatile abrasive •The most versatile vitrified bond, especially recommended for toolroom, cylindrical, and surface grinding •Grinds with an exceptional cool, fast cutting action, requires minimum dressing •Outstanding form holding •Better choice for medium to heavy stock removal •Cylindrical wheels are used most often when the part is held between centers and in chucks. There are three methods of cylindrical grinding: plunge, traverse, and angular. Plunge grinding wheels are thrust or plunged into the part, traverse grinding wheels move across the part, and angular grinding wheels contact the part at an angle. | Country of Origin | USA |
Shipping Info
Package Weight
40.5
