3-3/4X1-1/2X1-1/4_CB150

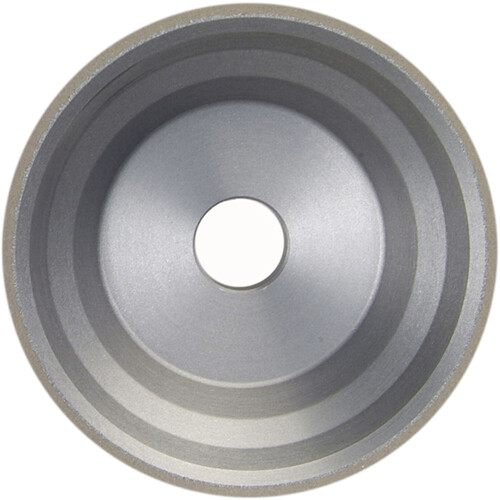

Diamond Wheel ; Type 11V9 ; Cubic Boron Nitride ; 3-3/4″ Dia. × 1-1/2″ W ; 1-1/4″ Arbor ; 150 Grit ; 1/8″ Depth ; 9,677 Max. RPM
| Abrasive Material | Cubic Boron Nitride | Wheel Type | Type 11V9 |
| Diameter | 3-3/4″ | Depth | 1/8″ |
| Width | 1-1/2″ | Concentration | T |
| Arbor Hole | 1-1/4″ | Maximum RPM | 9,677 |
| Grit | 150 | Specification | CB150-TB99-1/8 |
Product Features
| Remarks | •CBN (cubic Boron Nitride) abrasive material is second in hardness to diamond so easily cuts difficult-to-grind steel parts Rc 50 or harder •Pre-engineered resin bond B99 for free-cutting, superior form holding •Highly wear resistant and thermally stable •The choice for sharpening high steel (M2, D2, T15, etc.) cutting tools and hardened steel die components •Made in USA in our ISO certified facilitiesThe Norton 99 resin bond line of quality CBN (cubic boron nitride) grinding products for stock removal to tight tolerance precision finishing applications, is made in the USA in our ISO certified facilities. Our CBN wheels are the choice for grinding high-speed, die, hardened carbon, hardened stainless, and alloy steels; aerospace alloys; and abrasion-resistant ferrous materials. | Country of Origin | USA |
Shipping Info
Package Weight
0.75
