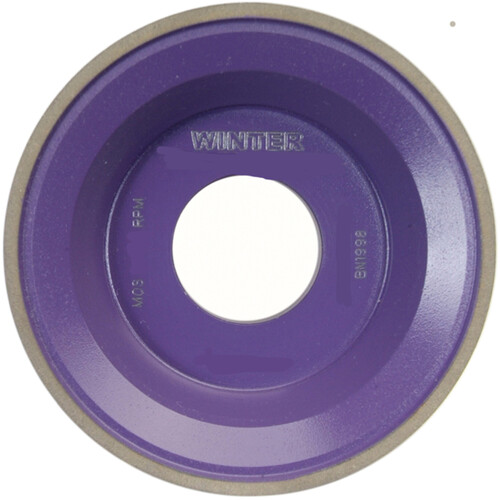

3.740″ × 1 3/8″ × 1-1/4″ CBN Wheel Type 11V9 Flaring Cup 150 Grit
Diamond Wheel ; Type 11V9 ; Cubic Boron Nitride ; 3-3/4″ Dia. × 1-3/8″ W ; 1-1/4″ Arbor ; 150 Grit ; 3/8″ Depth ; 9,702 Max. RPM
| Abrasive Material | Cubic Boron Nitride | Wheel Type | Type 11V9 |
| Diameter | 3-3/4″ | Depth | 3/8″ |
| Width | 1-3/8″ | Concentration | 180 |
| Arbor Hole | 1-1/4″ | Maximum RPM | 9,702 |
| Grit | 150 | Specification | B150-N180-KSS10D |
Product Features
| Remarks | •Superior synthetic CBN abrasive reduces cycle times and dressing, and creates long wheel life •Special resin KSS10D bond designed primarily for dry toolroom grinding •Durable bakelite wheel core •Controlled self-sharpening wheel wear •Exceptional metal removal ratesNorton/Winter toolroom and saw sharpening wheels combine American application and production expertise, and German technology to provide the most accurate and cost-effective grinding solutions. Their precise geometry and superior consistency translate to lower manufacturing and regrinding costs and improved tool quality. | Country of Origin | Brazil |
Shipping Info
Package Weight
0.7
