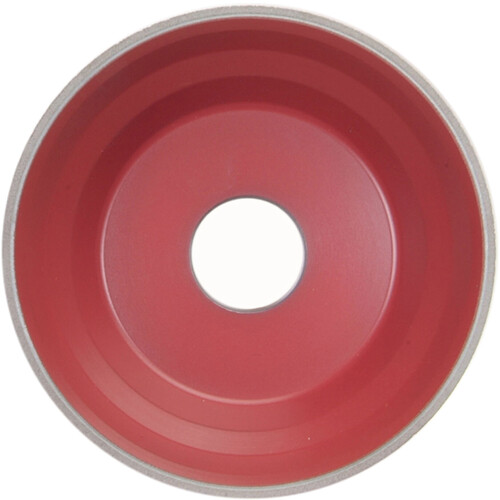

3-3/4″ × 1-1/2″ × 1-1/4″ Aztec CBN Wheel Type 11V9 Flaring Cup 100 Grit
Diamond Wheel ; Type 11V9 ; Cubic Boron Nitride ; 3-3/4″ Dia. × 1-1/2″ W ; 1-1/4″ Arbor ; 100 Grit ; 1/16″ Depth ; 9,677 Max. RPM
| Abrasive Material | Cubic Boron Nitride | Wheel Type | Type 11V9 |
| Diameter | 3-3/4″ | Depth | 1/16″ |
| Width | 1-1/2″ | Maximum RPM | 9,677 |
| Arbor Hole | 1-1/4″ | Specification | Aztec.007-100-1/16 |
| Grit | 100 |
Product Features
| Remarks | •Consistent, high quality CBN (cubic Boron Nitride) abrasive provides 85 percent longer life than standard CBN wheels •Aztec .007 advanced heat-reducing bond conducts heat away from workpiece •Allows increased infeed (start at .007) for high stock removal rate, heaviest cuts with less wheel wear. lower grinding forces, and elimination of chatter •Free cutting and superior form holding to extend cutting tool life •Ideal for dry tool resharpeningThese Norton coated CBN (Cubic Boron Nitride) grinding wheels. with their unique resin bonds, are optimized for high performance on high-speed, die, hardened carbon, hardened stainless, and alloy steels; aerospace alloys; and abrasion-resistant ferrous materials. | Country of Origin | USA |
Shipping Info
Package Weight
0.75
