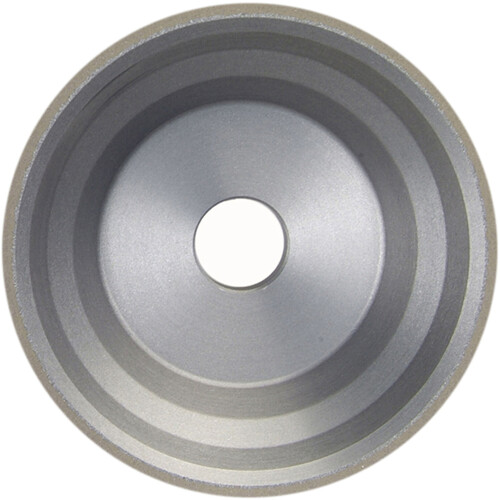

3.75″ × 1.5″ × 1-1/4″ Diamond Wheel Resin Bond Type 11V9 Flaring Cup 180 Grit
Diamond Wheel ; Type 11V9 ; Diamond ; 3-3/4″ Dia. × 1-1/2″ W ; 1-1/4″ Arbor ; 180 Grit ; 1/8″ Depth ; 9,677 Max. RPM

| Abrasive Material | Diamond | Wheel Type | Type 11V9 |
| Diameter | 3-3/4″ | Depth | 1/8″ |
| Width | 1-1/2″ | Concentration | 100 |
| Arbor Hole | 1-1/4″ | Maximum RPM | 9,677 |
| Grit | 180 | Specification | SD180-R100B99-1/8 |
Product Features
| Remarks | •Durable, free-cutting synthetic diamond abrasive
•Versatile B99 free-cutting resin bond; use wet or dry; superior form holding
•Should be used on low horse power (3/4 hp or less) machines
•Longer wheel life vs. conventional green silicon carbide wheels
•Made in ISO-certified facilities in the USA
•Pre-engineered resin bond ? B99 for free cutting; superior form holding; efficient wet or dry
•Premium, heavy-duty resin bond ? B105 for ideal for dry toolroom reconditioning applications, Abrasive Type: Used with B99 and B105 bonds; Armored; Durable; Versatile; Wet or dry; Carbide/steel operationsThe 99 line of quality stock superabrasive diamond and CBN (cubic boron nitride) grinding products includes 250+ USA-made, ISO-certified wheels for stock removal to tight-tolerance, precision finishing applications. Available in resin, vitrified, metal and MSL (metal single layer) bonds. | Country of Origin | USA |
Shipping Info
Package Weight
0.7
