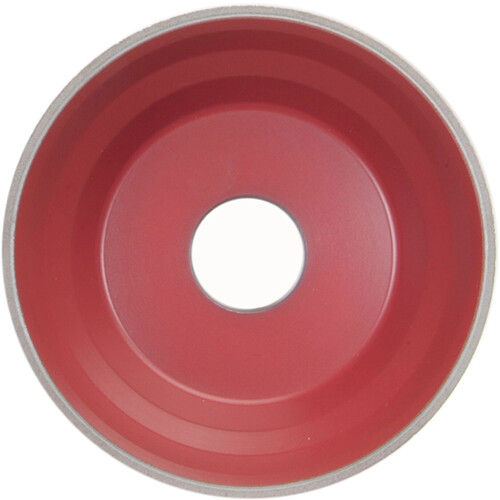

3-3/4″ × 1-1/2″ × 1-1/4″ Aztec III CBN Wheel Type 11V9 Flaring Cup 120 Grit
Diamond Wheel ; Type 11V9 ; Cubic Boron Nitride ; 3-3/4″ Dia. × 1-1/2″ W ; 1-1/4″ Arbor ; 120 Grit ; 1/8″ Depth ; 9,677 Max. RPM
| Abrasive Material | Cubic Boron Nitride | Wheel Type | Type 11V9 |
| Diameter | 3-3/4″ | Depth | 1/8″ |
| Width | 1-1/2″ | Concentration | 75 |
| Arbor Hole | 1-1/4″ | Maximum RPM | 9,677 |
| Grit | 120 | Specification | Aztec III 120T-1/8 |
Product Features
| Remarks | •Consistent, high quality CBN (cubic Boron Nitride) abrasive provides 85 percent longer life than standard CBN wheels •Aztec III advanced heat-reducing bond conducts heat away from workpiece •Free cutting and superior form holding to extend cutting tool life •Lubricating bond eliminates steel and braze loading, reduces drag, and allows greater infeed •Ideal for dry tool resharpeningThese Norton coated CBN (Cubic Boron Nitride) grinding wheels. with their unique resin bonds, are optimized for high performance on high-speed, die, hardened carbon, hardened stainless, and alloy steels; aerospace alloys; and abrasion-resistant ferrous materials. | Country of Origin | USA |
Shipping Info
Package Weight
0.838
