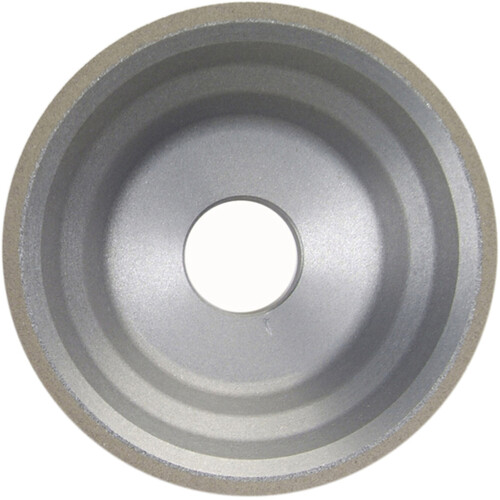

3″ × 1.25″ × 3/4″ Diamond Wheel Resin Bond Type 11V9 Flaring Cup 150 Grit
Diamond Wheel ; Type 11V9 ; Diamond ; 3″ Dia. × 1-1/4″ W ; 3/4″ Arbor ; 150 Grit ; 1/16″ Depth ; 12,096 Max. RPM
| Abrasive Material | Diamond | Wheel Type | Type 11V9 |
| Diameter | 3″ | Depth | 1/16″ |
| Width | 1-1/4″ | Concentration | 100 |
| Arbor Hole | 3/4″ | Maximum RPM | 12,096 |
| Grit | 150 | Specification | SD150-R100B99-1/16 |
Product Features
| Remarks | •Durable, free-cutting synthetic diamond abrasive •Versatile B99 free-cutting resin bond; use wet or dry; superior form holding •Should be used on low horse power (3/4 hp or less) machines •Longer wheel life vs. conventional green silicon carbide wheels •Made in ISO-certified facilities in the USA •Vitrified bond ? V99 for most durable under high grinding forces; excellent for wet, offhand finishing of carbide tools •Abrasive Type: Used with B99 and V99 bonds; Norton standard; Wet or dry; Free cutting; Low horsepower (3/4 hp or less) •Concentration: Very durable; For flood coolants; Use with 220 grit or finer; Use for cutting-off, Bond: Wet or dry; Tool making; resharpeningThe 99 line of quality stock superabrasive diamond and CBN (cubic boron nitride) grinding products includes 250+ USA-made, ISO-certified wheels for stock removal to tight-tolerance, precision finishing applications. Available in resin, vitrified, metal and MSL (metal single layer) bonds. | Country of Origin | USA |
Shipping Info
Package Weight
0.438
