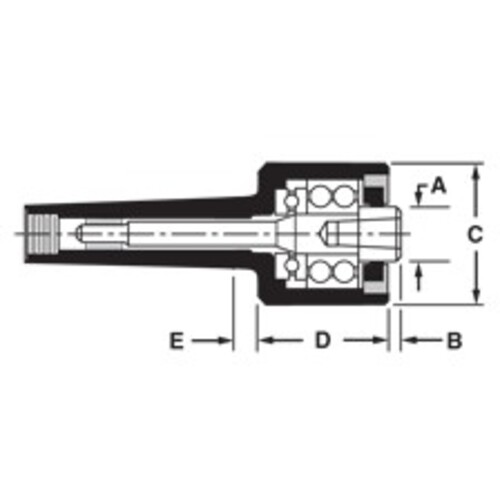

5MT LIVE CENTER BODY

| Type | Live Center | Model No | 49105 |
| Taper Type | Morse Taper | Head Length | 2 7/16″ |
| Head Diameter | 3 1/8″ | Point Length | 1/4″ |
| Maximum RPM | 4,000 | Style | Changeable Point Body |
| Mount | 5 MT | Neck Width | 3/8″ |
| Point Diameter | 1 37/64″ | Radial Load | 1,400 lbs |
Product Features
| Remarks | •A Quick Point Set includes: one center, one male point, one female point, one tracer point, one bull nose point, and point extractor.
•Accuracy guaranteed to .0025 TIR.
•RPM up to 3000 maximum.
•Versatile, lowers point replacement costs.
•One standard male point comes with the center.
•Special points are available upon request.
•Mounting taper of points is 1:10.
•One set of points will cover most requirements.
•Safe storage container provided when you purchase a complete set. | Country of Origin | USA |
Shipping Info
Package Weight
8.6
