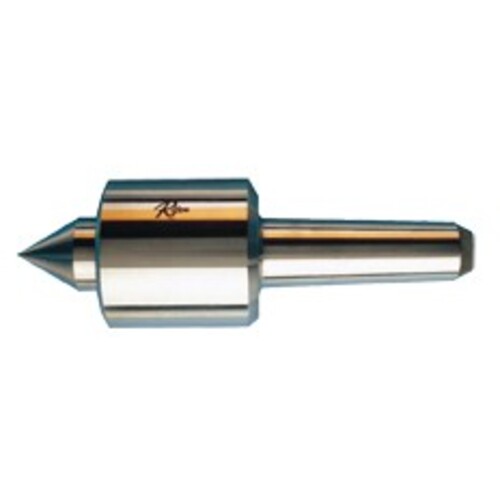

Live Centers - #5 MT Triple Bearing Standard
| Type | Live Center | Accuracy | 0.0002″ |
| Taper Type | Morse Taper | Model No | 34105 |
| Point Style | Standard | Head Length | 3 27/32″ |
| Head Diameter | 3 3/4″ | Point Length | 2 1/4″ |
| Maximum RPM | 3,200 | Style | Triple Bearing |
| Mount | 5 MT | Neck Width | 1/2″ |
| Point Diameter | 1 7/8″ | Radial Load | 8,000 lbs |
Product Features
| Remarks | •Accuracy guaranteed to .0001 TIR. •Triple bearing for heavier loads. •Riten full service, repair and guarantee apply. •For use where the piece part may weigh several hundred pounds. Radial pressure and thrust requirements demand centers with bearing structures that will handle these loads. | Country of Origin | USA |
Shipping Info
Package Length
14.50000
Package Width
5.00000
Package Height
5.00000
Package Weight
14.245
