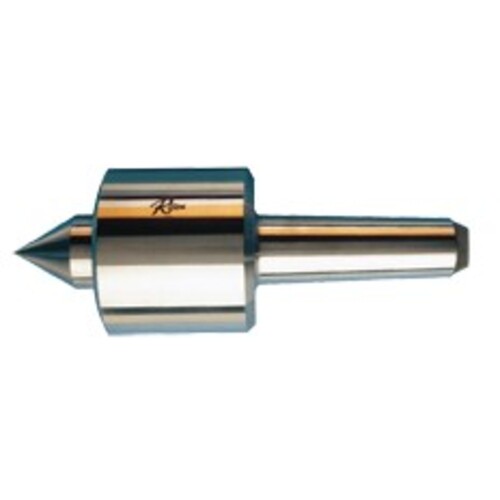

Live Centers - #3 MT Extra HD Standard
| Type | Live Center | Accuracy | 0.0002″ |
| Taper Type | Morse Taper | Model No | 55103 |
| Point Style | Standard | Head Length | 3 3/16″ |
| Head Diameter | 2 13/16″ | Point Length | 1 1/2″ |
| Maximum RPM | 4,000 | Style | Extra Heavy Duty |
| Mount | 3 MT | Neck Width | 1/2″ |
| Point Diameter | 1 1/8″ | Radial Load | 3,000 lbs |
Product Features
| Remarks | •Accuracy guaranteed to .0001 TIR. •Designed for heavy steel rolls, paper rolls, printing rolls, castings, forgings and other large parts. •Riten full service, repair and guarantee apply. •For use where the piece part may weigh several hundred pounds. Radial pressure and thrust requirements demand centers with bearing structures that will handle these loads. | Country of Origin | USA |
Shipping Info
Package Weight
7
