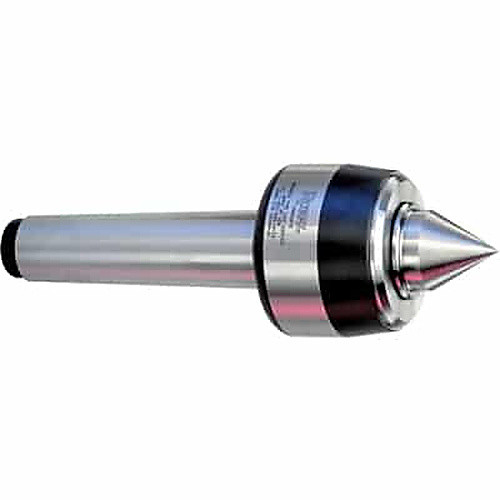

Live Centers - #2 MT Spindle Type Standard
| Type | Live Center | Accuracy | 0.0001″ |
| Taper Type | Morse Taper | Model No | 10102 |
| Point Style | Standard | Head Length | 1 7/16″ |
| Head Diameter | 1 3/4″ | Point Length | 1 1/32″ |
| Maximum RPM | 6,000 | Tip Diameter | 7/8″ |
| Mount | 2 MT | Style | Spindle |
| Point Diameter | 7/8″ | Radial Load | 725 lbs |
| Thrust Load | 2,360 lbs |
Product Features
| Remarks | •An excellent heavy-duty live center designed to handle most turning applications. •.00005″ TIR guaranteed. •Heavy-duty precision bearings provide exceptional thrust and radial load capacities. •The substantial point extends into the shank where it is supported by a large needle bearing for increased strength and rigidity. •Bearing life is significantly extended with the exclusive Royal Roto-Shield coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids. •Body and point are hardened for strength and durability. •On the CNC model, the extended point provides great tool clearance. | Country of Origin | USA |
Shipping Info
Package Weight
1.2
