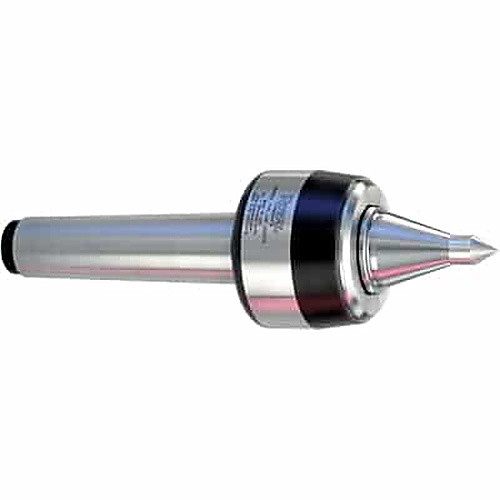

| Type | Live Center | Accuracy | 0.0001″ |
| Taper Type | Morse Taper | Model No | 10214 |
| Point Style | CNC | Head Length | 1 31/32″ |
| Head Diameter | 2 3/4″ | Point Length | 2 7/32″ |
| Maximum RPM | 4,500 | Tip Diameter | 1/2″ |
| Mount | 4 MT | Style | Spindle |
| Point Diameter | 1 1/4″ | Radial Load | 1,120 lbs |
| Thrust Load | 4,050 lbs |
Product Features
| Remarks | •An excellent heavy-duty live center designed to handle most turning applications. •0.00005″ TIR guaranteed. •Heavy-duty precision bearings provide exceptional thrust and radial load capacities. •The substantial point extends into the shank where it is supported by a large needle bearing for increased strength and rigidity. •Bearing life is significantly extended with the exclusive Royal Roto-Shield coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids. •Body and point are hardened for strength and durability. •On the CNC model, the extended point provides great tool clearance. | Country of Origin | USA |
Shipping Info
Package Length
12.30000
Package Width
3.60000
Package Height
3.50000
Package Weight
2.76
