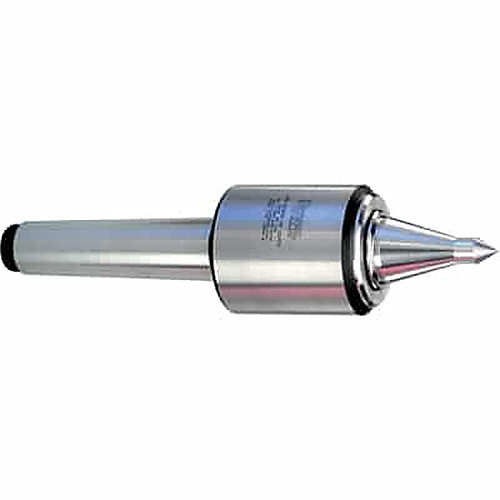

| Type | Live Center | Accuracy | 0.0001″ |
| Taper Type | Morse Taper | Model No | 10664 |
| Point Style | CNC | Head Length | 2.780″ |
| Head Diameter | 2.45″ | Point Length | 2.35″ |
| Maximum RPM | 5,000 | Tip Diameter | 0.500″ |
| Mount | 4 MT | Style | Quad Bearing |
| Point Diameter | 1.250″ | Radial Load | 1,230 lbs |
| Thrust Load | 2,150 lbs |
Product Features
| Remarks | •High-Precision Quad-Bearing Live Centers •Great for grinding and tight tolerance turning. • 0.00005″ TIR guaranteed. •Three precision angular contact bearings are secured to the point with a locknut to form a rigid, preloaded assembly. •The point extends into the body where it is supported by a needle roller bearing, which further increases rigidity, reduces point deflection, and dampens vibration. •Bearing life is significantly extended with the exclusive Royal Roto-Shield coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids. •Low profile head provides excellent tool clearance. •Body and point are hardened for strength and durability. | Country of Origin | USA |
Shipping Info
Package Length
12.40000
Package Width
3.60000
Package Height
3.50000
Package Weight
4.635
