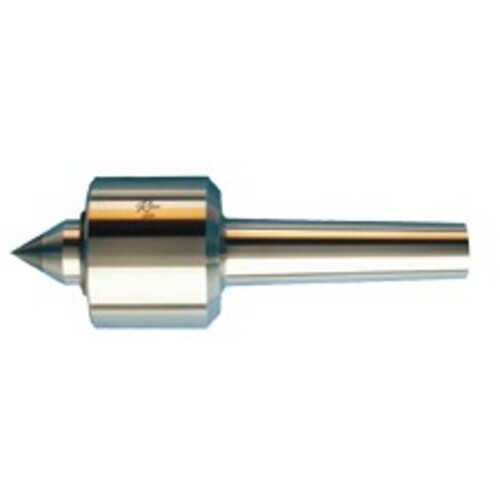

LIVE CENTER 4MT LONG POIN
| Type | Live Center | Thrust Load | 1,100 lbs |
| Taper Type | Morse Taper | Model No | 14104 |
| Point Style | Long Point CNC | Head Length | 2 5/16″ |
| Center Type | 30° | Point Length | 2 1/2″ |
| Head Diameter | 2 3/4″ | Style | High RPM |
| Maximum RPM | 4,000 | Neck Width | 3/8″ |
| Mount | 4 MT | Radial Load | 1,100 lbs |
| Overall Length (OAL) | 2 1/4″ | Shank Length | 15/16″ |
| Point Diameter | 1/2″ |
Product Features
| Remarks | •CNC High RPM Sprint Live Centers •Accuracy guaranteed to .00005. •Coolant Deflectors, no friction seal. •Point configuration allows for tool clearance. •Meets the rigid requirements of CNC turning. •Points through-hardened to 61-63 Rc. •Body heat-treated for additional strength. •Riten full service, repair,and guarantee apply. | Country of Origin | USA |
Shipping Info
Package Length
13.10000
Package Width
3.40000
Package Height
3.40000
Package Weight
6.9
