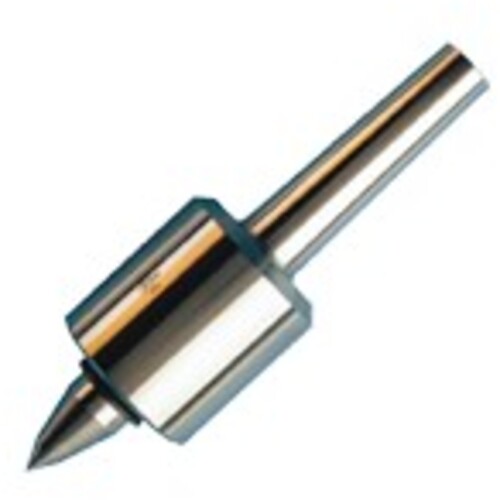

Live Centers - #5 MT HD Tracer Point
| Type | Live Center | Accuracy | 0.0001″ |
| Taper Type | Morse Taper | Model No | 16195 |
| Point Style | Tracer Point | Head Length | 3 27/32″ |
| Center Type | 30 Degree | Point Length | 3 25/32″ |
| Head Diameter | 3 3/4″ | Style | Heavy Duty |
| Maximum RPM | 4,000 | Neck Width | 1/2″ |
| Mount | 5 MT | Radial Load | 3,800 lbs |
| Point Diameter | 5/8″ |
Product Features
| Remarks | •These CNC live centers are used to counter the high thrust as infacedriving applications. These centers are also used whereworkpieces may weigh several thousand pounds. Radial pressure,thrust and rigidity requirements demand centers with triple row bearingdesign to handle these loads. •Accuracy guaranteed to .0002 TIR. •May be used in conjunction with Facedrivers. •Large workpieces in CNC applications. •Riten full service, repair and guarantee apply. | Country of Origin | USA |
Shipping Info
Package Weight
9
