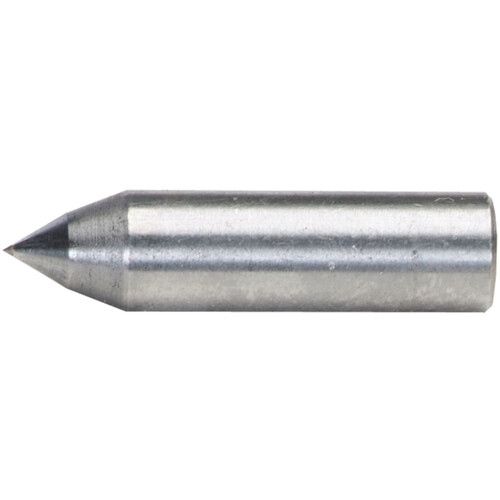

1/4″ × 1″ Diamond Dressing Tool Phono Point 60° Included Angle
| Type | Phono-Point Tool | Maximum Compatible Wheel Diameter | 8″ |
| Shank Diameter | 1/4″ | Included Angle | 60 Degrees |
| Model No | NP1M4 |
Product Features
| Remarks | •Designed for dressing tight, exact concave, convex, and intricate shapes into grinding wheel faces •Primarily used on surface grinding wheels; may be used on any grinder having a correct set-up •Usually used on up to 8 In. vitrified toolroom wheels to impart specific shapes and forms into the wheel face. •60 degree included angle •Not resettable •Our Norton stationary diamond dressing tool line is the industry's most comprehensive line of stock and made-to-order products to true (restore the wheel's profile) and dress (open to remove stock or close to finish, the face of the wheel). The line includes single point, multi-point (nib, grit tool), blade, form, toolroom, and cluster tools, and truing devices. | Country of Origin | USA |
Shipping Info
Package Length
1.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.01
