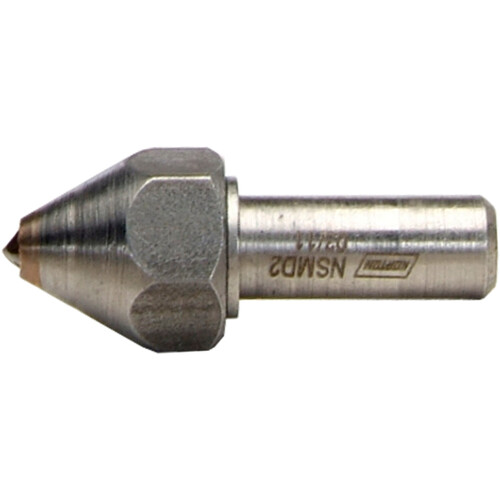

1/4″ × 1-3/16″ Diamond Dressing Tool Indexable Single Point
| Type | Indexible Single Point Tool | Model No | NSMD2 |
| Shank Length | 0.62″ | Maximum Compatible Wheel Diameter | 7″ |
| Shank Diameter | 1/4″ | Style | Indexable |
Product Features
| Remarks | •These Indexable Mini-Dex tools have a well-defined, durable sharp diamond point •For dressing straight, tapered, and convex wheel forms; steeper 60 degree included angle head design for greater machine and part clearance produce forms with tighter tolerances •The choice for CNC and centerless grinders; the head can be turned, using standard 5/8 In. wrench, through the hole in the side of the wheel guard without removing the guard •Use with aluminum oxide up to 7 In. In. wheel diameters •May be reset once, providing great value •Our Norton stationary diamond dressing tool line is the industry's most comprehensive line of stock and made-to-order products to true (restore the wheel's profile) and dress (open to remove stock or close to finish, the face of the wheel). The line includes single point, multi-point (nib, grit tool), blade, form, toolroom, and cluster tools, and truing devices. | Country of Origin | USA |
Shipping Info
Package Weight
0.056
