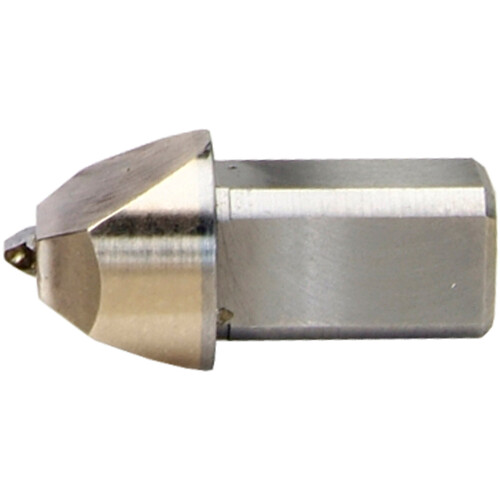

7/16″ × 1.100″ Diamond Dressing Tool Chisel Point 55° Included Angle
| Type | Chisel Point Tool | Maximum Compatible Wheel Diameter | 24″ |
| Diamond Carat Size | 3/4″ | Radius | 0.02″ |
| Shank Diameter | 7/16″ | Included Angle | 55 Degrees |
| Model No | CHT520-7 |
Product Features
| Remarks | •.75 carat weight of diamonds •For forming intricate shapes and radii on Toyoda machines, series GL32 and GL4 •May also be used on various straight and angle-head grinders •For dressing 12-24 In. diameter, conventional and ceramic and silicon carbide wheels. •May be reset and relapped for extra value •Our Norton stationary diamond dressing tool line is the industry's most comprehensive line of stock and made-to-order products to true (restore the wheel's profile) and dress (open to remove stock or close to finish, the face of the wheel). The line includes single point, multi-point (nib, grit tool), blade, form, toolroom, and cluster tools, and truing devices. | Country of Origin | USA |
Shipping Info
Package Weight
0.15
