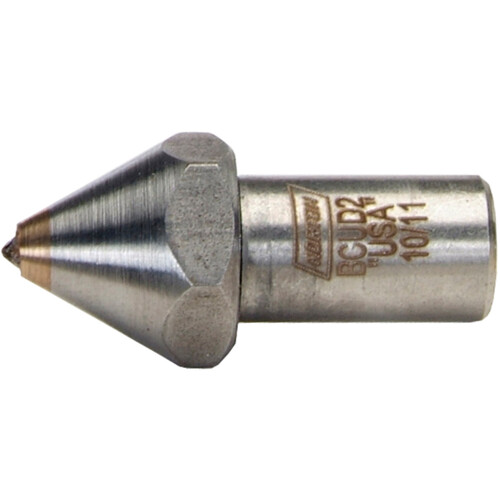

7/16″ × 1 7/16″Diamond Dressing Tool Indexable Single Point
| Type | Indexible Single Point Tool | Model No | BCUD2 |
| Shank Length | 3/4″ | Maximum Compatible Wheel Diameter | 7″ |
| Shank Diameter | 7/16″ | Style | Indexable |
Product Features
| Remarks | •These Indexable tools have consistent diamond structure and shape for repeatable dressing performance •For dressing straight, tapered, and convex wheel forms; steeper 60 degree included angle head design for greater machine and part clearance produce forms with tighter tolerances •The choice for CNC and centerless grinders; the head can be turned, using standard 5/8 In. wrench, through the hole in the side of the wheel guard without removing the guard •Use with aluminum oxide up to 7 In. wheel diameters •Non-resettable; the choice when a resetting program is not feasible or low initial cost is the primary purchasing consideration •Our Norton stationary diamond dressing tool line is the industry's most comprehensive line of stock and made-to-order products to true (restore the wheel's profile) and dress (open to remove stock or close to finish, the face of the wheel). The line includes single point, multi-point (nib, grit tool), blade, form, toolroom, and cluster tools, and truing devices. | Country of Origin | USA |
Shipping Info
Package Length
1.50000
Package Width
.68800
Package Height
.68800
Package Weight
0.05
