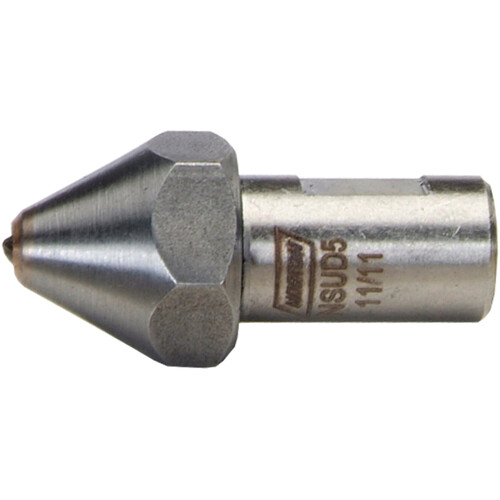

7/16″ × 1 7/16″Diamond Dressing Tool Indexable Single Point
| Type | Indexible Single Point Tool | Model No | NSUD5 |
| Diamond Carat Size | 1/2″ | Maximum Compatible Wheel Diameter | 14″ |
| Shank Length | 3/4″ | Style | Indexable |
| Shank Diameter | 7/16″ |
Product Features
| Remarks | •These Indexable U-Dex-It tools have a well-defined, durable sharp diamond point •For dressing straight, tapered, and convex wheel forms; steeper 60 degree included angle head design for greater machine and part clearance produce forms with tighter tolerances •The choice for CNC and centerless grinders; the head can be turned, using standard 5/8 In. wrench, through the hole in the side of the wheel guard without removing the guard •Use with aluminum oxide 11-14 In. wheel diameters •May be reset once, providing great value •Our Norton stationary diamond dressing tool line is the industry's most comprehensive line of stock and made-to-order products to true (restore the wheel's profile) and dress (open to remove stock or close to finish, the face of the wheel). The line includes single point, multi-point (nib, grit tool), blade, form, toolroom, and cluster tools, and truing devices. | Country of Origin | USA |
Shipping Info
Package Weight
0.05
